Container Specifications

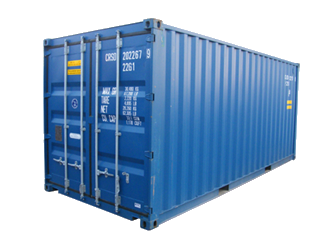

  • DRY CARGO CONTAINERS

    Manufactured from either Aluminium or steel, they are suitable for most types of cargo/general cargo. Aluminium containers have a slightly larger payload than steel, and steel containers have a slightly larger internal cube.

    Dimensions
    Type Container Weight Interior Measurement Door Open
    Gross (kg) Tare (kg) Net (kg) Length (m) Width (m) Height (m) Capacity (m³) Width (m) Height (m)
    20' DC 24,000 2,370 21,630 5.898 2.352 2.394 33.20 2.343 2.280
    40' DC 30,480 4,000 26,480 12.031 2.352 2.394 67.74 2.343 2.280

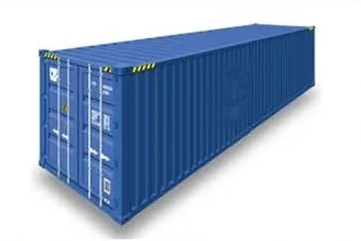

  • HIGH CUBE CONTAINERS

    With high cube containers, you gain an extra foot in height compared with general-purpose containers. Ideal for light, voluminous cargo or bulky cargo. These extra volume containers come in steel and aluminium.

    Dimensions
    Type Container Weight Interior Measurement Door Open
    Gross (kg) Tare (kg) Net (kg) Length (m) Width (m) Height (m) Capacity (m³) Width (m) Height (m)
    40' HC 30,480 3,980 26,500 12.031 2.352 2.698 76.30 2.340 2.585
    45' HC 30,480 4,800 25,680 13.544 2.352 2.698 86.00 2.340 2.585

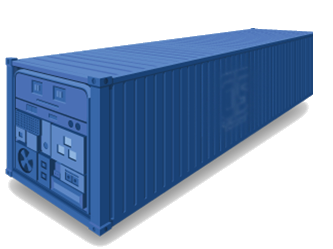

  • REFRIGERATED CONTAINERS

    Recommended for delicate cargo. Bottom-air delivery system ensures refrigerated cargo reaches its destination in optimum condition.

    Dimensions
    Type Gross Weight (kg) Tare Weight (kg) Net Weight (kg) Length (m) Width (m) Height (m) Capacity (m³) Door Width (m) Door Height (m)
    20' RF 24,000 3,050 20,950 5.449 2.290 2.244 26.70 2.276 2.261
    40' RF 30,480 4,520 25,960 11.690 2.290 2.244 57.10 2.280 2.205

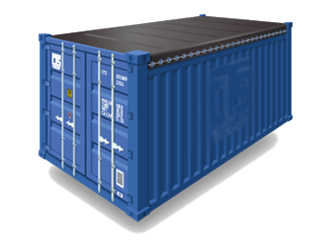

  • OPEN TOP CONTAINERS

    Allowing cargo to be loaded from the top, open top containers are particularty suitable for bulky cargo such as machinery. They are fitted with a PVC tarpaulin cover and attachable bows with cable sealing devices. The container doors can be removed to make the stuffing of cargo more convenient. Manufactured from steel.

    Dimensions
    Type Gross Weight (kg) Tare Weight (kg) Net Weight (kg) Length (m) Width (m) Height (m) Capacity (m³) Door Width (m) Door Height (m)
    20' OT 24,000 2,580 21,420 5.692 2.212 2.311 32.00 2.330 2.263
    40' OT 30,480 4,290 26,190 11.763 2.212 2.311 65.40 2.330 2.263

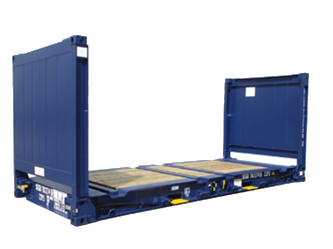

  • FLAT RACK CONTAINERS

    Flatracks are especially suited to heavy loads or cargo that needs loading from the top or sides, such as pipes and machinery. There are collapsible and non-collapsible containers with or without walls. Manufactured from steel.

    Dimensions
    Type Gross Weight (kg) Tare Weight (kg) Net Weight (kg) Length (m) Width (m) Height (m) Capacity (m³)
    20' FR 30,480 2,900 27,580 5.624 2.236 2.234 27.90
    40' FR 34,000 5,870 28,130 11.786 2.236 1.968 51.90
